Individual seals for Yam. 1000 (FX140) View larger

Individual gaskets for Yamaha 1000 (FX140)

Individual and adaptable WSM or SBT gaskets (depending on availability) .. More details

23 Items

Customer's reviews for this product : (voir)
1 customer review
5/5
Reference to select
Disponibility
QT.
Price
  • Individual gaskets for Yamaha 1000 (FX140) 007-593-04
    Reference to select : 007-593-04
    Delivery within 2 to 10 days
    22,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 007-593-05
    Reference to select : 007-593-05
    Delivery within 2 to 10 days
    84,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 007-594
    Reference to select : 007-594
    Delivery within 2 to 10 days
    39,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 007-594-01
    Reference to select : 007-594-01
    Delivery within 2 to 10 days
    33,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 007-594-02
    Reference to select : 007-594-02
    Delivery within 2 to 10 days
    39,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 007-594-03
    Reference to select : 007-594-03
    Delivery within 2 to 10 days
    3,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 007-597
    Reference to select : 007-597
    In stock : 4
    2,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 007-597-03
    Reference to select : 007-597-03
    In stock : 2
    19,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 007-597-10
    Reference to select : 007-597-10
    Delivery within 2 to 10 days
    11,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-418-01
    Reference to select : 008-418-01
    In stock : 3
    18,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-683-02
    Reference to select : 008-683-02
    Delivery within 2 to 10 days
    9,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-683-03
    Reference to select : 008-683-03
    Delivery within 2 to 10 days
    14,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-683-04
    Reference to select : 008-683-04
    Delivery within 2 to 10 days
    12,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-683-06
    Reference to select : 008-683-06
    Delivery within 2 to 10 days
    3,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-683-07
    Reference to select : 008-683-07
    In stock : 3
    3,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-683-09
    Reference to select : 008-683-09
    Delivery within 2 to 10 days
    5,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-683-10
    Reference to select : 008-683-10
    Delivery within 2 to 10 days
    17,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-683-19
    Reference to select : 008-683-19
    Delivery within 2 to 10 days
    2,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-689-02
    Reference to select : 008-689-02
    Delivery within 2 to 10 days
    2,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-689-09
    Reference to select : 008-689-09
    Delivery within 2 to 10 days
    18,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-689-10
    Reference to select : 008-689-10
    Delivery within 2 to 10 days
    71,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-692
    Reference to select : 008-692
    Delivery within 2 to 10 days
    2,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-692-01
    Reference to select : 008-692-01
    Delivery within 2 to 10 days
    5,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 009-702-05J
    Reference to select : 009-702-05J
    In stock : 1
    16,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 009-791
    Reference to select : 009-791
    In stock : 1
    8,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 010-051
    Reference to select : 010-051
    In stock : 5
    3,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 010-052
    Reference to select : 010-052
    In stock : 4
    3,95€ tax incl.

More info

Individual and adaptable WSM or SBT gaskets (depending on availability) for YAMAHA 4-stroke 1000cc jet skis (FX from 2005-2008), (FX140 from 2002-2004) and (FX Cruiser 2003-2008)

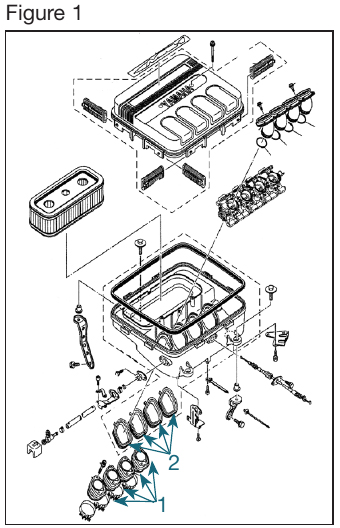

Original reference reference to select DESCRIPTION Figure No. No. on the image Recommended quantity

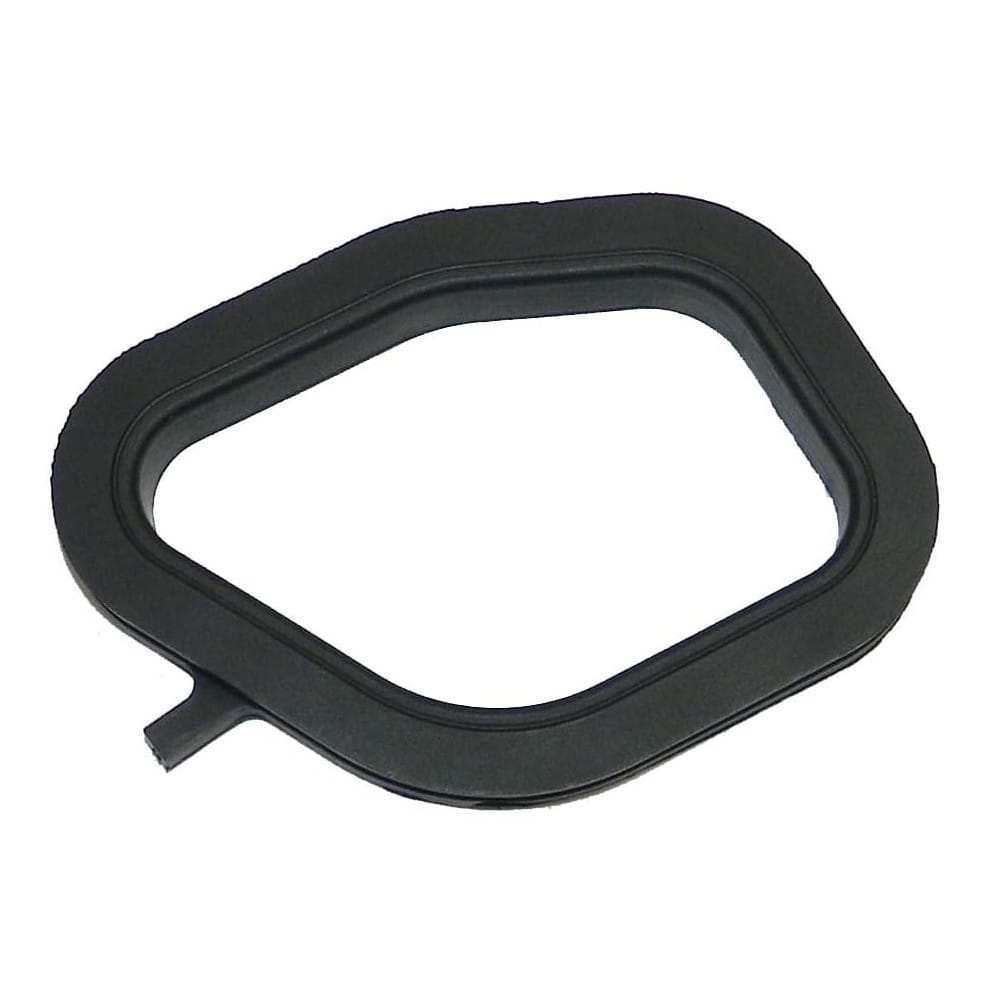

60E-14239-00-00 008-683-02 Intake Muffler Box Gasket 1 2 4

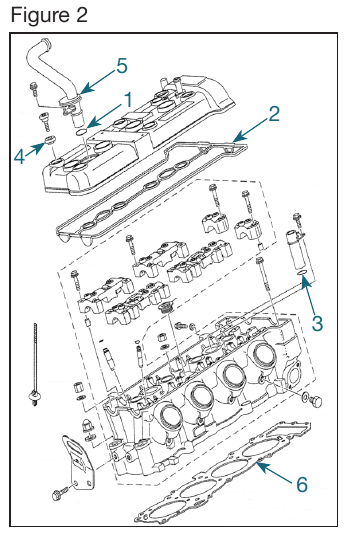

93210-18417-00 008-692 Pipe Ring 2 1 1

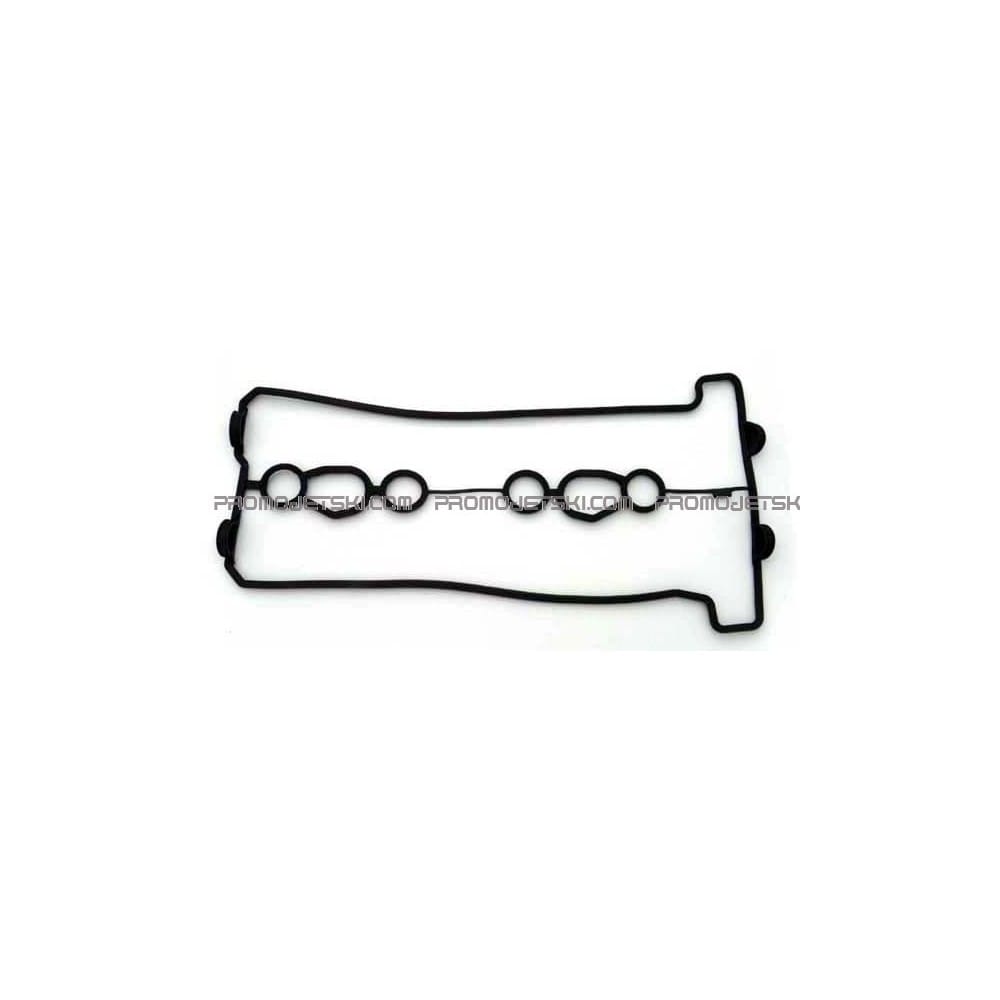

60E-11193-01-00 007-593-04 Main Cover Trim 2 2 1
93210-18417-00 008-692 Pipe Ring 2 3 1

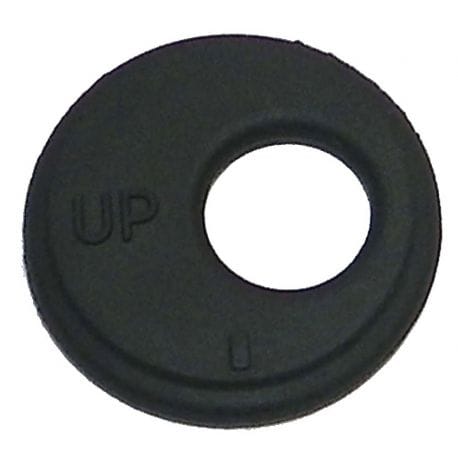

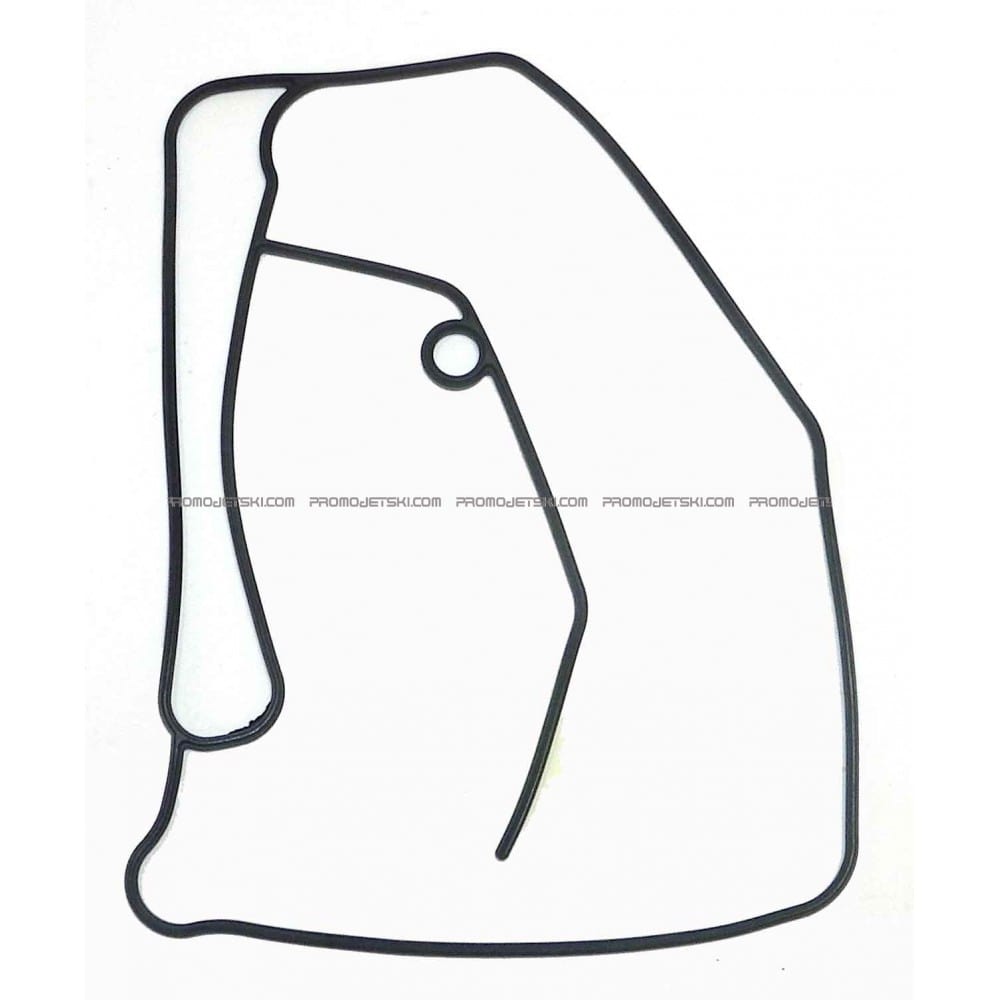

4kg-1111g-00-00 009-791 Valve Cover Maintain Seal 2 4 6
60E-12494-00-00 008-683-09 Pipe Joint 2 5 1

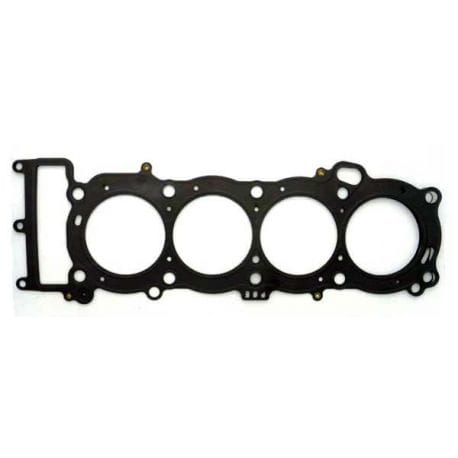

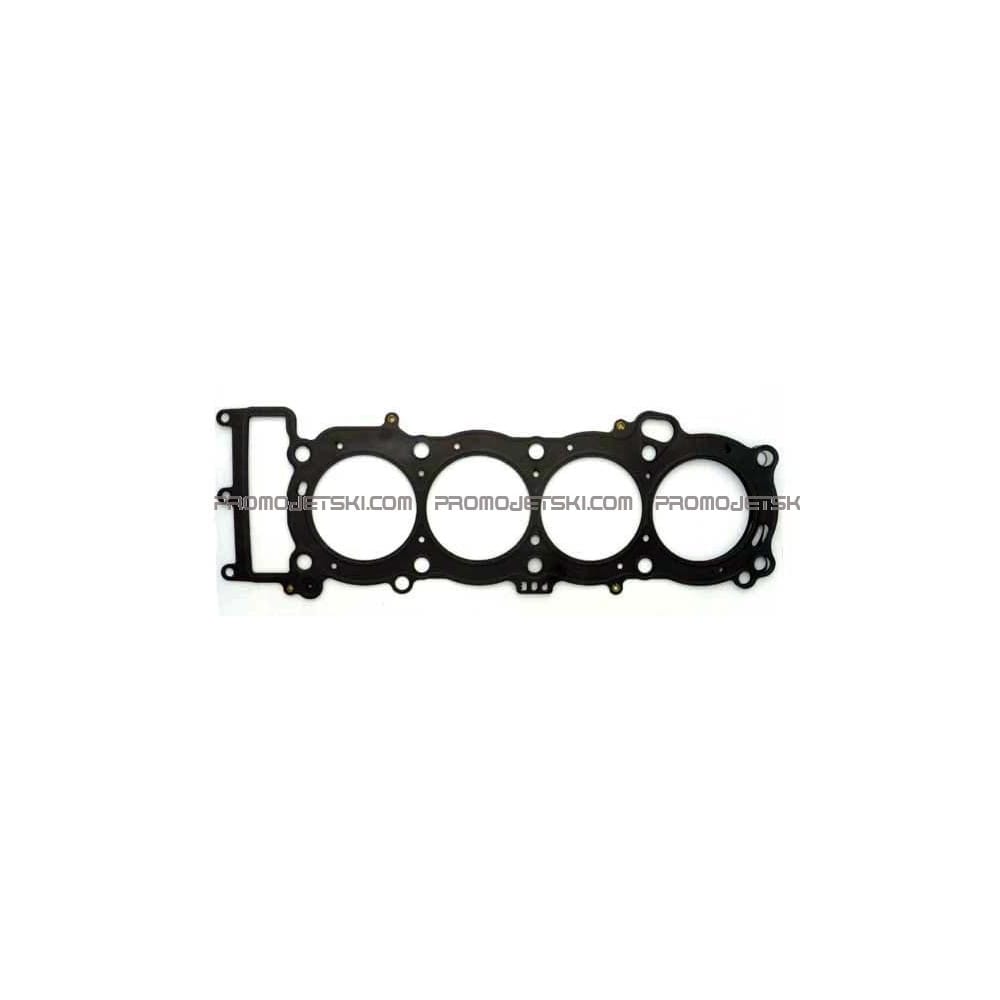

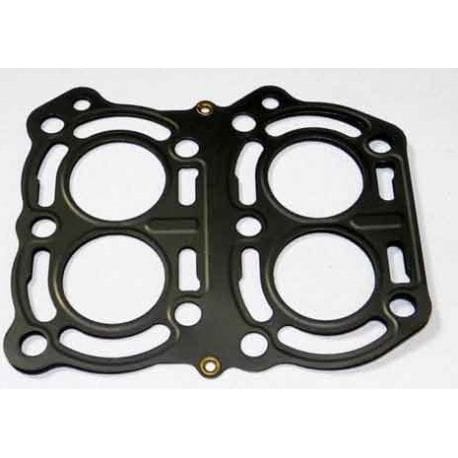

60E-11181-01-00 007-593-05 Cylinder Head Trim 2 6 1
Original reference reference to selectdescription Figure No.No. on the imageRecommended quantity

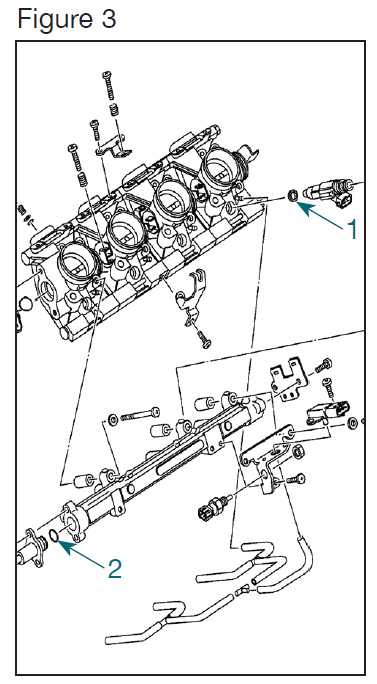

90430-09002-00 008-683-07 Fuel Injector Seal 3 1 4

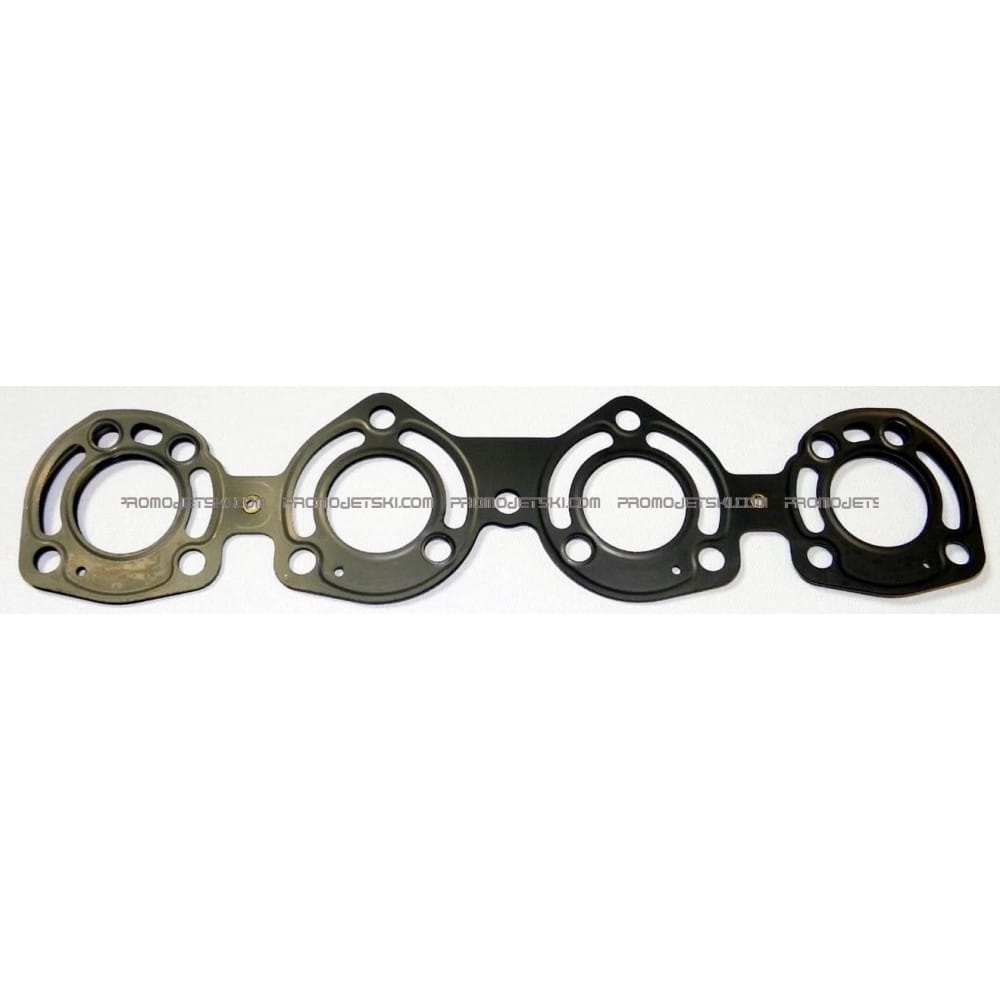

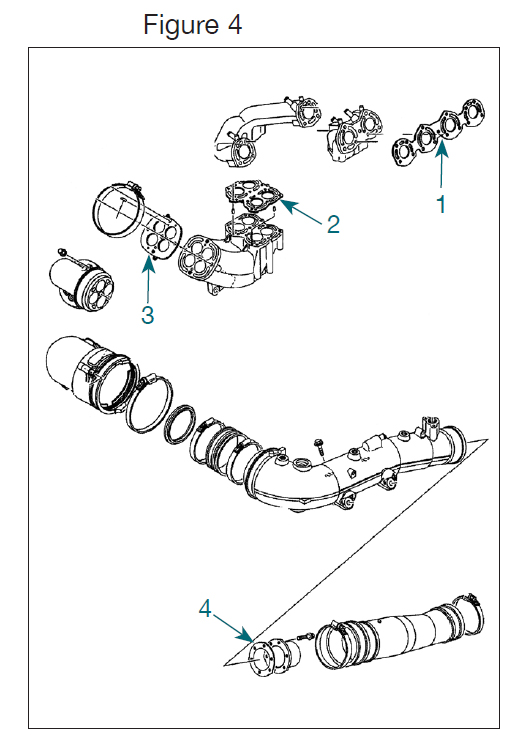

60E-14613-00-00 007-594 Exhaust Manifold Trim 4 1 1
60E-14739-01-00 007-594-01 Dampner #1 Exhaust Muffler 4 2 1
60E-14749-01-00 007-594-02 Dampner #2 Exhaust Muffler 4 3 1
60E-14623-00 007-594-03 Exhaust Pipe Trim 4 4 1
Original reference reference to selectdescription Figure No.No. on the imageRecommended quantity

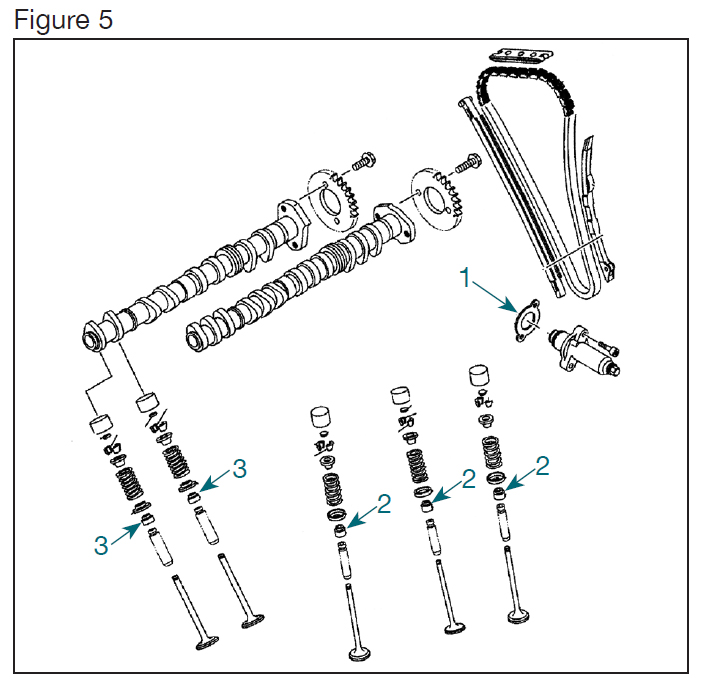

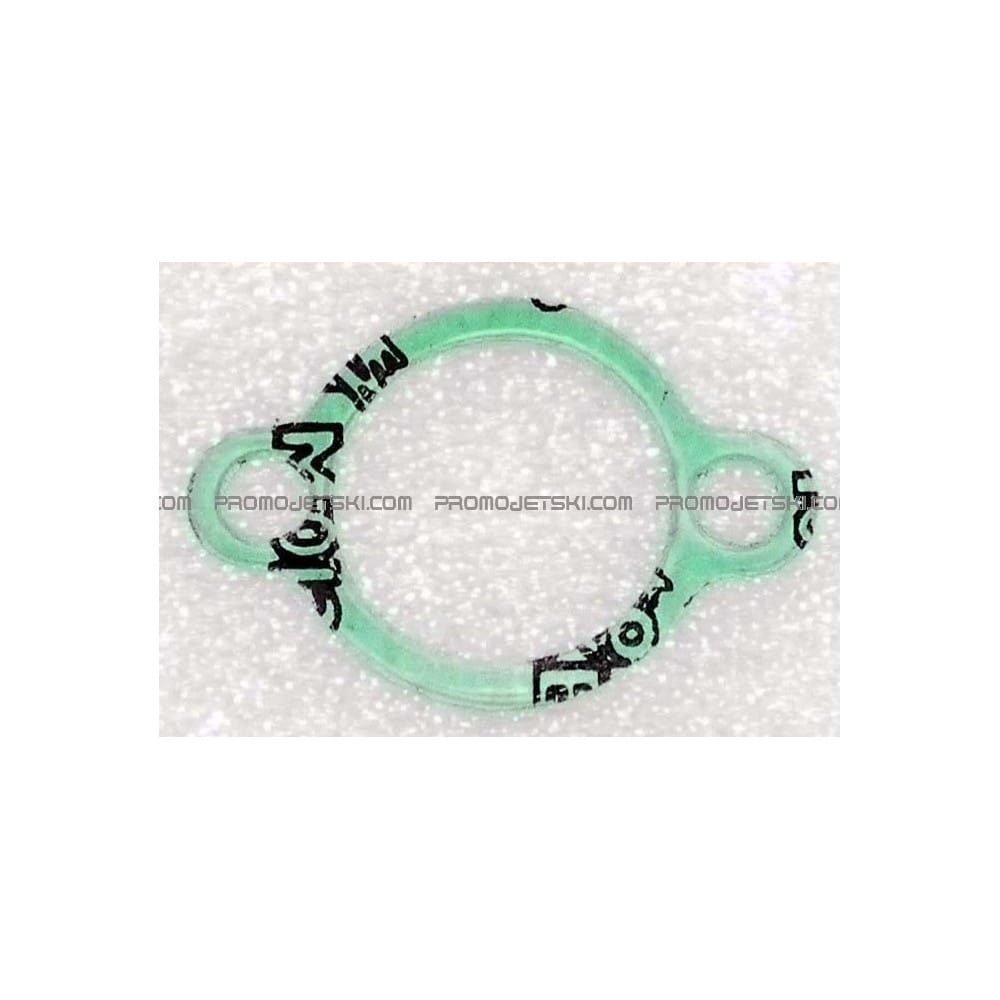

4fm-12213-00-00 007-597 Tensioner Chain Trim 5 1 1

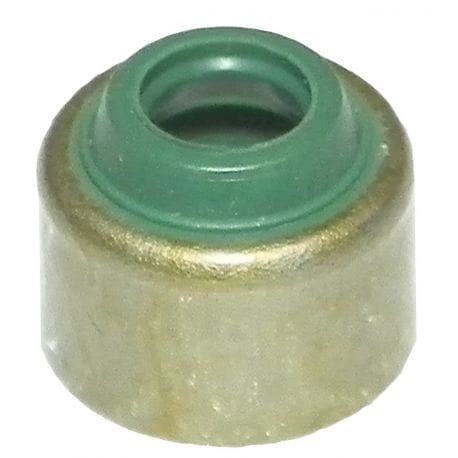

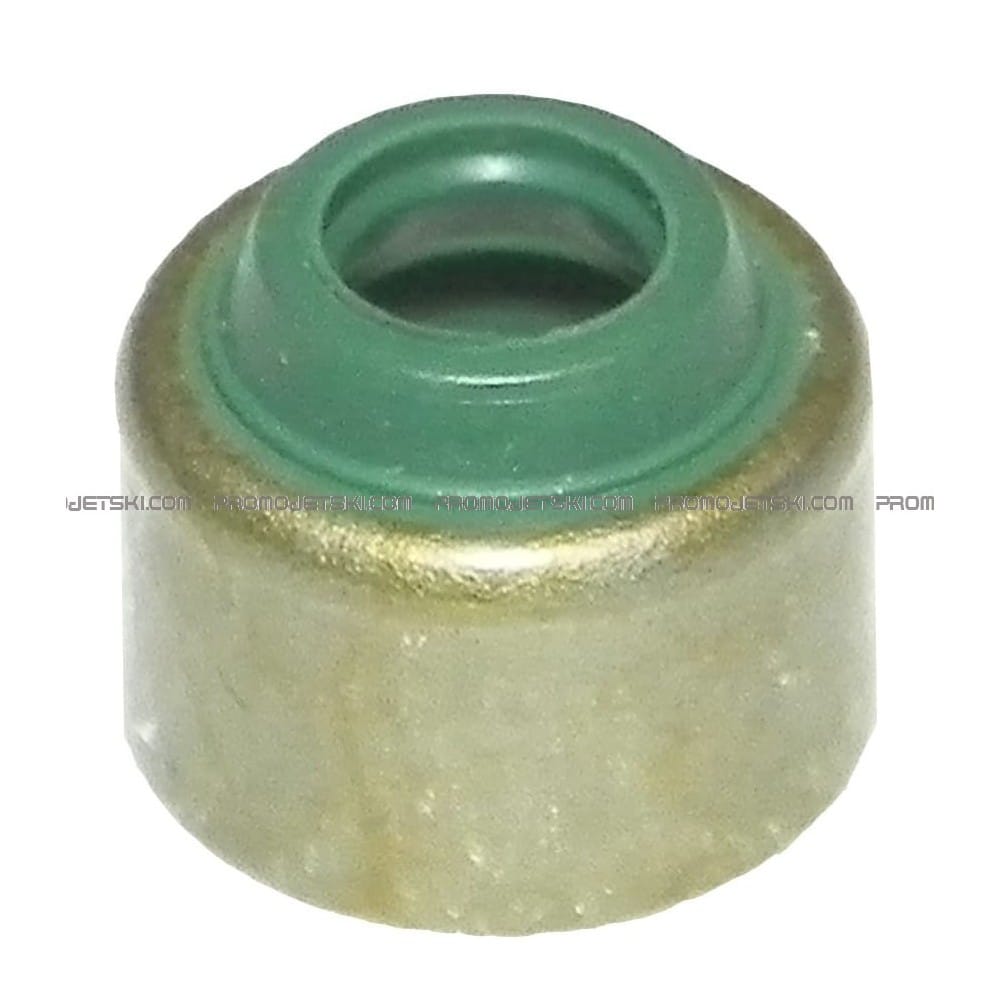

4tv-12119-00-00 010-051 Intake Valve Stem Seal 5 2 12
4sv-12119-00-00 010-052 Exhaust Valve Stem Seal 5 3 8

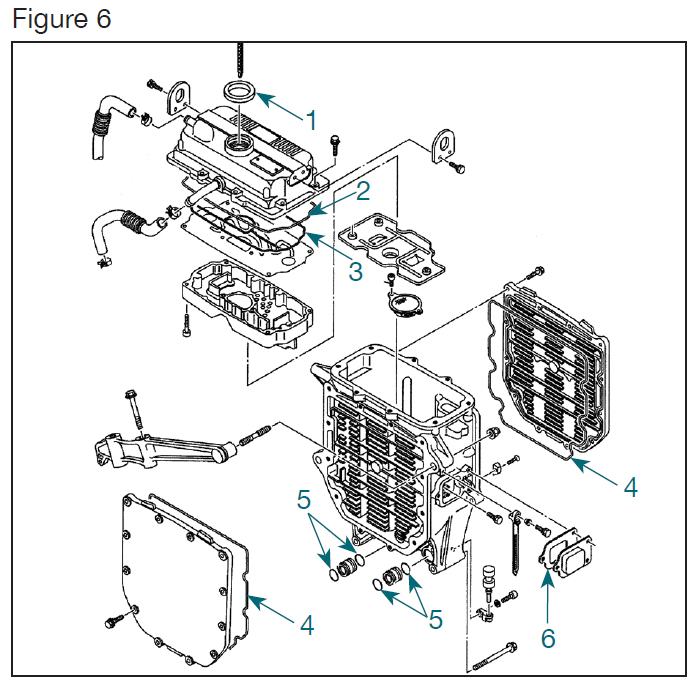

60E-13473-00-00 008-692-01 Dip Stick Ring 6 1 1
60E-13477-00-00 008-689-09 Oil Radiator Ring 6 2 1
60E-13475-00-00 007-597-03 Oil Radiator Trim 6 3 1
60E-13476-00-00 008-689-10 Oil Radiator Ring 6 4 2
93210-18322-00 008-689-02 Oil Radiator Ring 6 5 4
60E-13567-00-00 007-597-10 Oil Radiator Trim 6 6 1

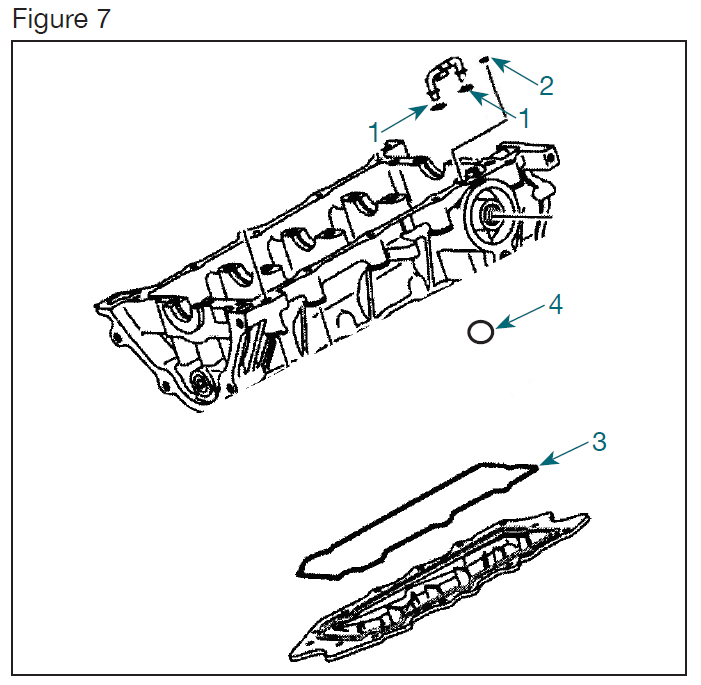

Original reference reference to selectdescription Figure No.No. on the imageRecommended quantity
93210-06667-00 008-683-19 Crankcase Bushing 7 1 2
60E-13557-00-00 008-683-10 Oil Pan Liner 7 3 1
93210-17006-00 008-683-06 Crankcase Bushing 7 4 1

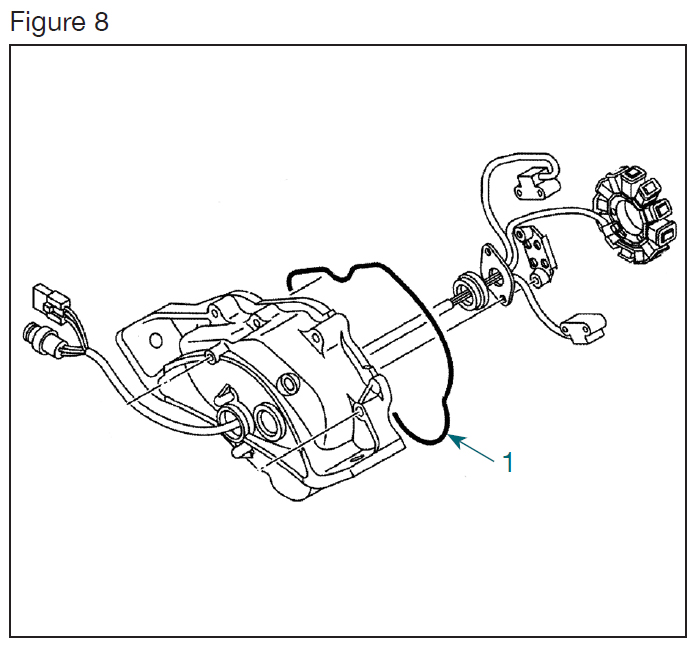

93212-04001-00 008-418-01 Generator Cover Trim 8 1 1
Original reference reference to selectdescription Figure No.No. on the imageRecommended quantity

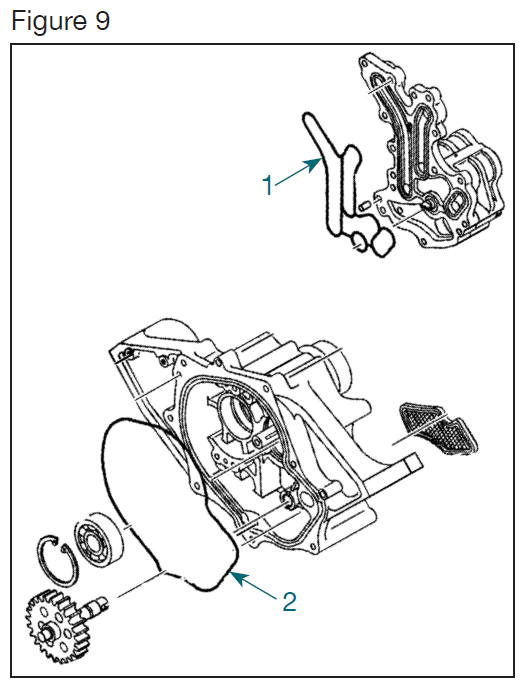

60E-13563-00-00 008-683-03 Oil Pump Ring 9 1 1
93211-95001-00 008-683-04 Oil Pump Ring 9 2 1

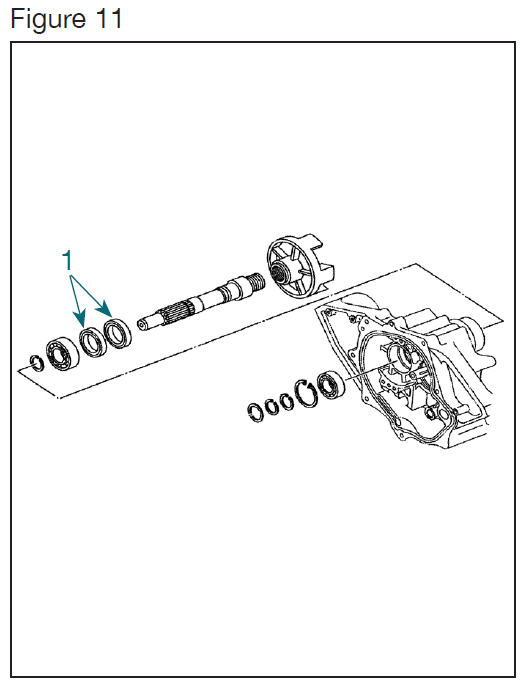

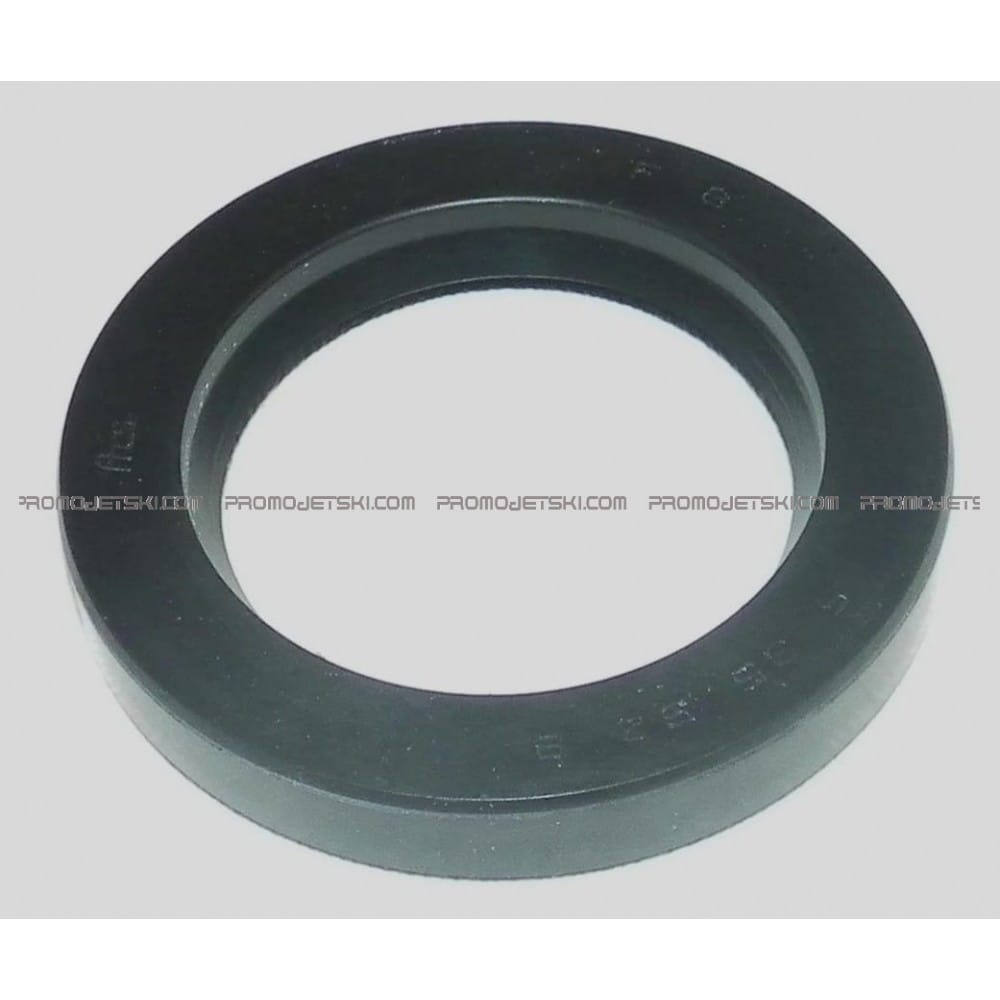

93101-35004-00 009-702-05J Seal 11 1 2
