4-stroke seals

vehiculier

Manufacturers

Individual gaskets for Seadoo 1500 4T jetski

Individual and adaptable WSM or SBT seals.. More details

76 Items

Reference to select
Disponibility
QT.
Price
  • Reference to select : 004-174-01
    In stock : 11
    13,95€ tax incl.
  • Reference to select : 007-399-05
    Delivery within 2 to 10 days
    113,95€ tax incl.
  • Reference to select : 007-399-06
    In stock : 1
    31,95€ tax incl.
  • Reference to select : 007-573-01
    Delivery within 2 to 10 days
    21,95€ tax incl.
  • Reference to select : 007-573-05
    Delivery within 2 to 10 days
    3,95€ tax incl.
  • Reference to select : 007-574-03
    In stock : 6
    50,95€ tax incl.
  • Reference to select : 007 588-01
    Delivery within 2 to 10 days
    1,95€ tax incl.
  • Reference to select : 008-400
    Delivery within 2 to 10 days
    4,95€ tax incl.
  • Reference to select : 008-599-09
    Delivery within 2 to 10 days
    11,95€ tax incl.
  • Reference to select : 008-599-12
    Delivery within 2 to 10 days
    13,95€ tax incl.
  • Reference to select : 008-599-15
    In stock : 34
    3,95€ tax incl.
  • Reference to select : 008-599-16
    Delivery within 2 to 10 days
    3,95€ tax incl.
  • Reference to select : 008-600-01
    In stock : 1
    4,95€ tax incl.
  • Reference to select : 008 600-03
    In stock : 1
    15,95€ tax incl.
  • Reference to select : 008-600-04
    Delivery within 2 to 10 days
    3,95€ tax incl.
  • Reference to select : 008-600-05
    Delivery within 2 to 10 days
    3,95€ tax incl.
  • Reference to select : 008 600-06
    Delivery within 2 to 10 days
    7,95€ tax incl.
  • Reference to select : 008-600-09
    In stock : 1
    9,95€ tax incl.
  • Reference to select : 008-605-01
    Delivery within 2 to 10 days
    2,95€ tax incl.
  • Reference to select : 010-050
    In stock : 21
    4,95€ tax incl.

More info

Individual and adaptable WSM or SBT seals (depending on availability) for SEA-DOO 4-stroke Jet-skis from 2002 to 2014



Original reference Reference to select Description Figure No. Image No. Quantity. Recommended

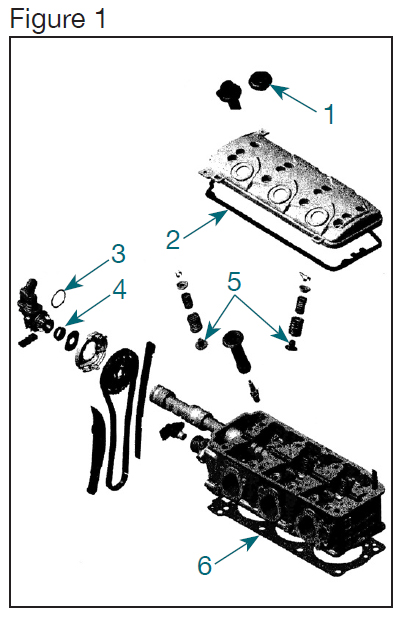

420460830 004-174-01 coil seal 1 1 3
290950820 007-399-06 cylinder head cover gasket 1 2 1
420950870 008-600-01 Cam Probe Ring 1 3 1
420630125 008-600-09 Cam V Probe Ring 1 4 1
420630200 010-050 Valve Stem Seal 1 5 12
420950770 007-399-05 cylinder head gasket 1 6 1

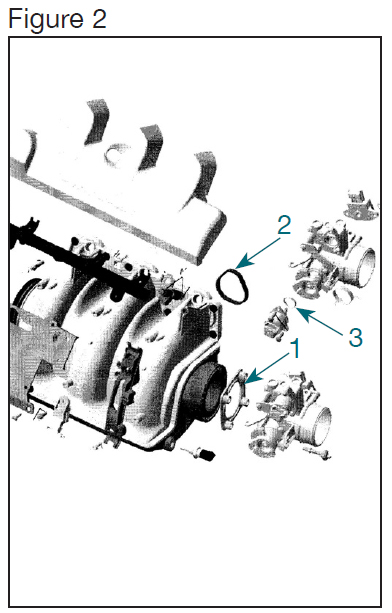

290950792 007-574-03 Throttle body trim 2 1 1
290950740 007-573-05 Rubber Ring Plug 2 2 3
420631780 008-605-01 Power Control Positioning Probe Ring 2 3 3
Original reference Reference to selectDescription Figure No.Image No.Quantity. Recommended

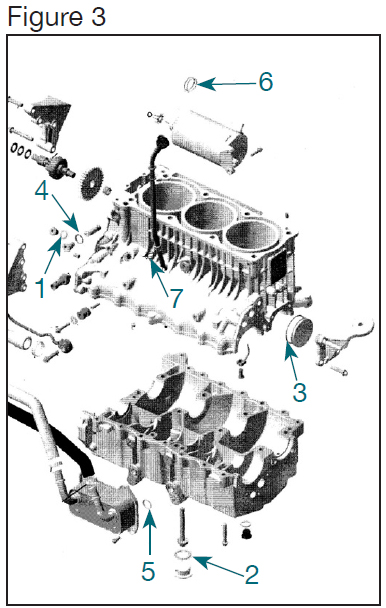

420250015 008-400 Engine Block Aluminum Washer 3 1 1
420631300 008-600-02 Crankcase Bushing (no longer manufactured) 3 2 1
420430405 008-600-03 End Cap Mount Ring 3 3 1
420430623 007-588-01 Drain Plug Gasket 3 4 1
420250055 008-600-04 Crankcase Bushing 3 5 1
420631310 008-600-05 Starter Ring 3 6 2
420950810 008-600-06 Dip Stick Tube Ring 3 7 2

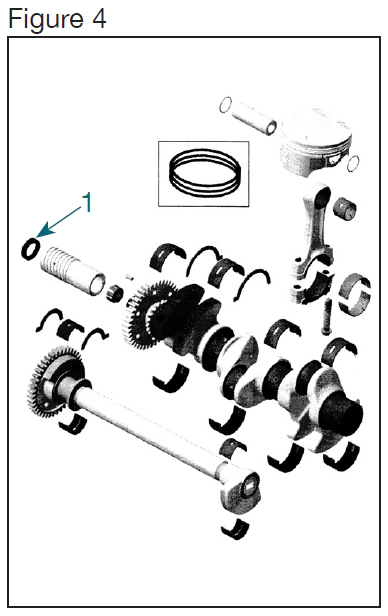

420630550 008-599-09 Crankshaft Surround Ring 4 1 1
Original reference Reference to selectDescription Figure No.Image No.Quantity. Recommended

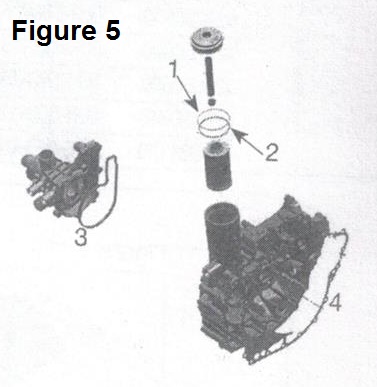

420230920 008-599-16 oil filter cap gasket 5 1 1
420850500 008-599-15 oil filter cap gasket 5 2 1
420950840 008-599-12 water pump housing gasket 5 3 1
420931130 007-573-01 drive cover gasket 5 4 1

List of products reference

  • 004-174-01
  • 007-399-05
  • 007-399-06
  • 007-573-01
  • 007-573-05
  • 007-574-03
  • 007-588-01
  • 008-400
  • 008-599-09
  • 008-599-12
  • 008-599-15
  • 008-599-16
  • 008-600-01
  • 008-600-03
  • 008-600-04
  • 008-600-05
  • 008-600-06
  • 008-600-09
  • 008-605-01
  • 010-050
Show the complete list
